Drop-in hardware sync for the RealSense D455. Forked RS-485 bus, CNC aluminum body, powered by the camera. Microsecond accurate.
/public/sequence.mp4

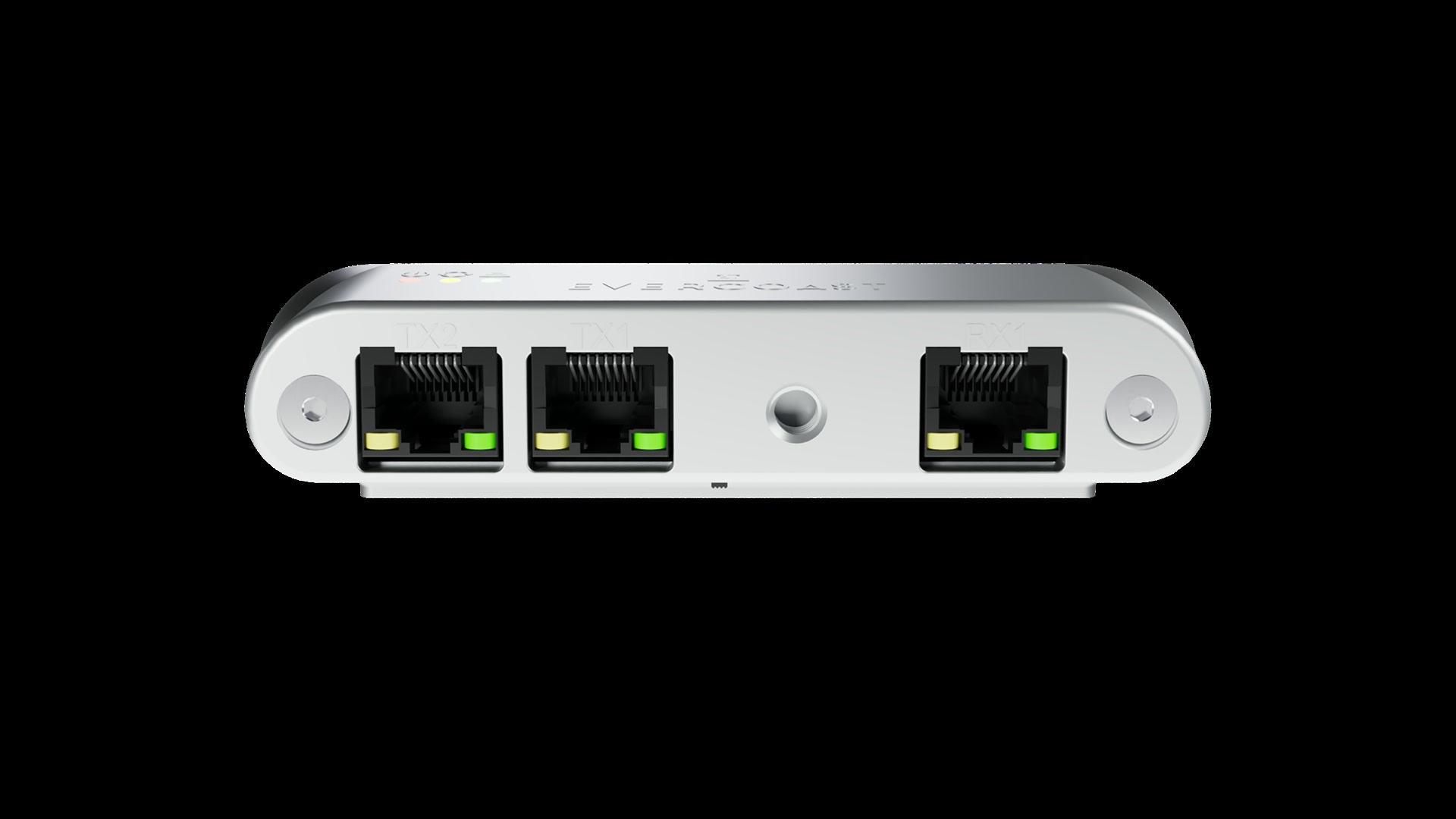

Two ISL32603E RS-485 transceivers on a sealed PCB carrier, a molded silicone gasket, and a hard-anodized aluminum shell held by black-oxide hex screws.

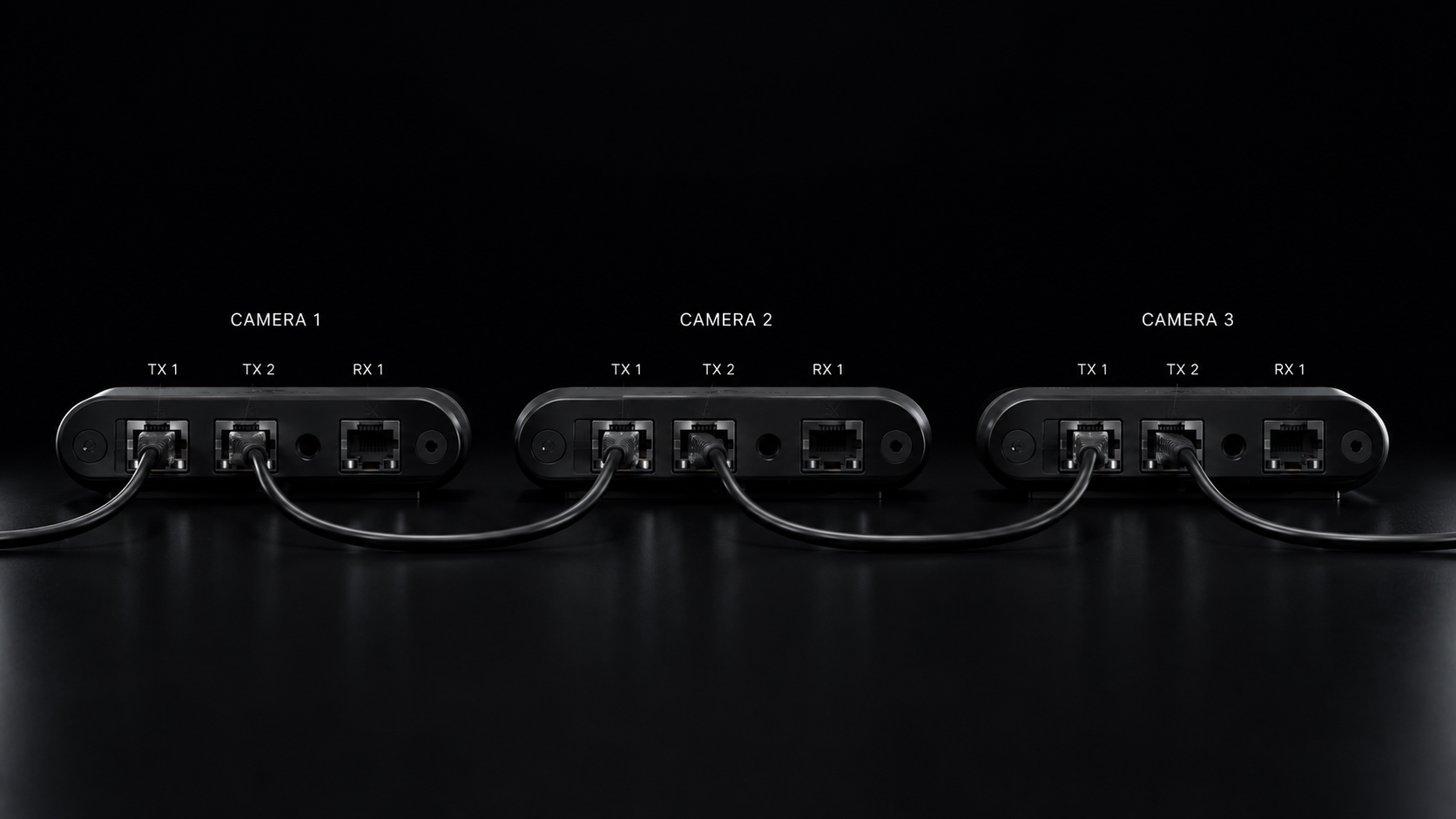

Sync comes in on RX1 and repeats out TX1 and TX2 over RJ45. Build a tree instead of one long chain: cable runs stay short, and a fault stays isolated to its own branch.
A slide switch on the underside sets each node to control or subordinate. The control node drives the sync edge out both TX ports; subordinates repeat it downstream, link by link.
Sand-blasted, hard-anodized shell with an integrated 1/4"-20 thread. Mounts to standard tripods, cages, and cold shoes.
Set any node's slide switch to control. It drives the sync edge out two RJ45 ports, and each port fans out to its own chain of subordinates — a full array wires as short branches instead of one long chain.
Power, control, and sync indicators on every node.
3.3 V camera rail energized. The node draws all of its power from the camera.
Lit on the node set to control — the one driving the sync edge on the bus.
A sync pulse arrived on the bus within the last ~5 ms. Lit means locked.
Full electrical, mechanical, and compatibility data for the node. Propagation delays characterized at the 1.8 V operating point.
Buy a RealSense camera with vSync pre-attached and calibrated, or — if you already own your cameras — mail them in and we'll install and calibrate the nodes for you.
Current lead time: all orders ship in ~4 weeks
A RealSense D455 with the vSync node pre-installed, sealed, and tested as a pair. Plug it in and start capturing.
Buy the nodes, then ship us your RealSense D455s. We install, calibrate, and seal each node, and send your cameras back sync-ready.
After checkout, we'll contact you to arrange shipping for your cameras. Lead time runs from the day they arrive.
For large bulk purchases, please contact sales.
Volume pricing, custom configurations, or questions about fit — send the details and we'll reply by email.
